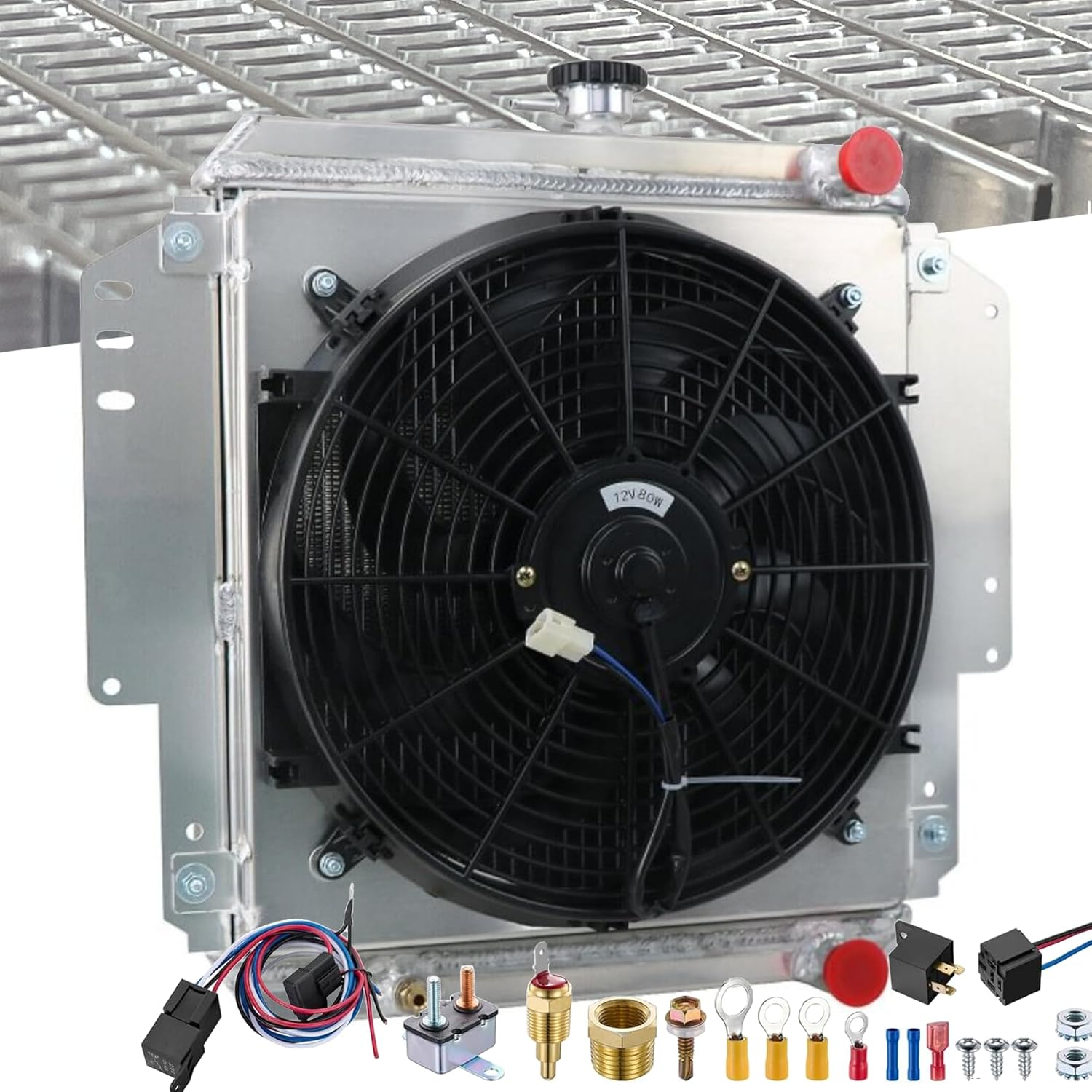

Radiator for 1985-1995 Suzuki Samurai Sierra Jimny Hardtop SJ410 SJ413 1.3L L4 Gas, 2 Row Full Aluminium Radiator + 14 Inch Fan + Shroud + Thermostat Relay Kit

Radiator Specifics: Condition: 100% Brand New Material: Aircraft AA5052 grade aluminum tank & core Row: 2 Row Core Size: 15.4'' x 14.9'' x 1.42'' Thickness Overall Size: 20.5''x 19.3'' Inlet Diameter: 1.1 inch Passenger Side Outlet Diameter: 1.1 inch Passenger Side CNC Machine Billet Radiator Cap OEM Style Brass Petcock Drain Fan Spec: Maximum Fan CFM: 2200±200 FAN Diameter: 14.05" X 14.05" X 2.5" Number of Blades: 8 blades (Plastic) Maximum Fan RPM/ Amp Draw :2,250 rpm / 12.70 amps Thermostat Relay Kit Instructions: Activates by grounding electric fans at preset temperature. 180'F/165'F turn on/off temperature. RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. This Radiator Compatible with: 1984-1998 Jimny JA51 1300 SJ413 1.3L MT 1984-1998 Sierra SJ413 1.3L MT 1984-1998 Chevy Samurai SJ413 1.3L MT 1984-1998 Samurai SJ413 1.3L MT 1984-1998 Holden Drover SJ413 1.3L MT 1984-1998 Suzuki Potohar SJ413 1.3L MT 1984-1998 Santana Samurai SJ413 1.3L MT 1984-1998 Suzuki Caribian SJ413 1.3L MT 1984-1998 Suzuki Katana SJ413 1.3L MT PLS check more detailed vehicle information by AmazonConfirmedFit to confirm this radiator fit your vehicle before you order. Please Notes: HKAUTOPART offering a brand new professional Aluminum Radiator at an best price. We warranty that all our products are made of the best materials and advanced manufacture technique.We also offer you 100% risk-free satisfaction guarantee to let you buy with confidence; If you are not satisfied with the quality of the product, please contact us in time, we will fully-refund you after item returned. If you have any problem(Before payment or after payment), please feel free to contact us via email. We will try our best to solve your problem as soon as possible. Shroud+Fans The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.

• Core Size: 15.4'' x 14.9'' x 1.42'' Thickness, Overall Size: 20.5''x 19.3''
• Inlet Diameter: 1.1 inch Passenger Side, Outlet Diameter: 1.1 inch Passenger Side
• 100% brazed aluminum core, TIG-welded to aluminum end tanks for superior durability and longevity
• Shroud fan provides protection and extra heat heat dissipation for the radiator
• Vehicle test-fitted prior to market release, ensuring perfect drop-in fit
