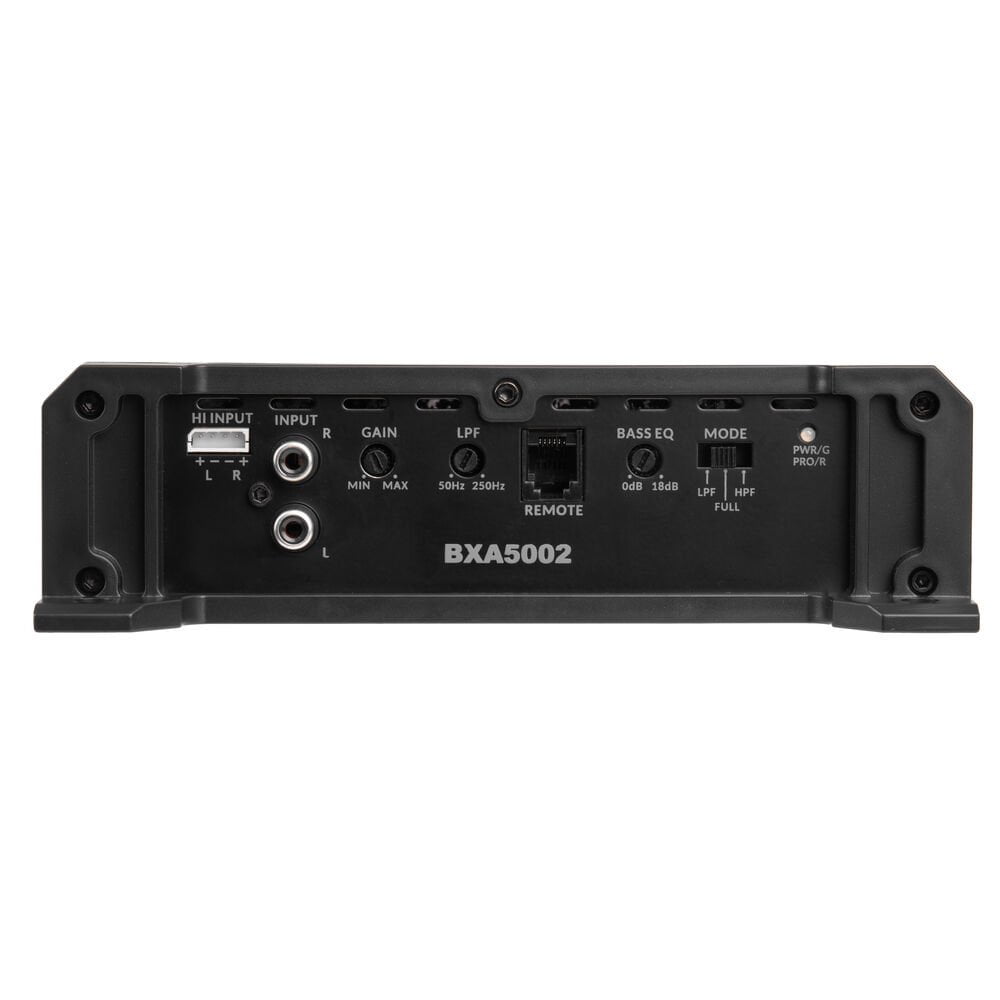

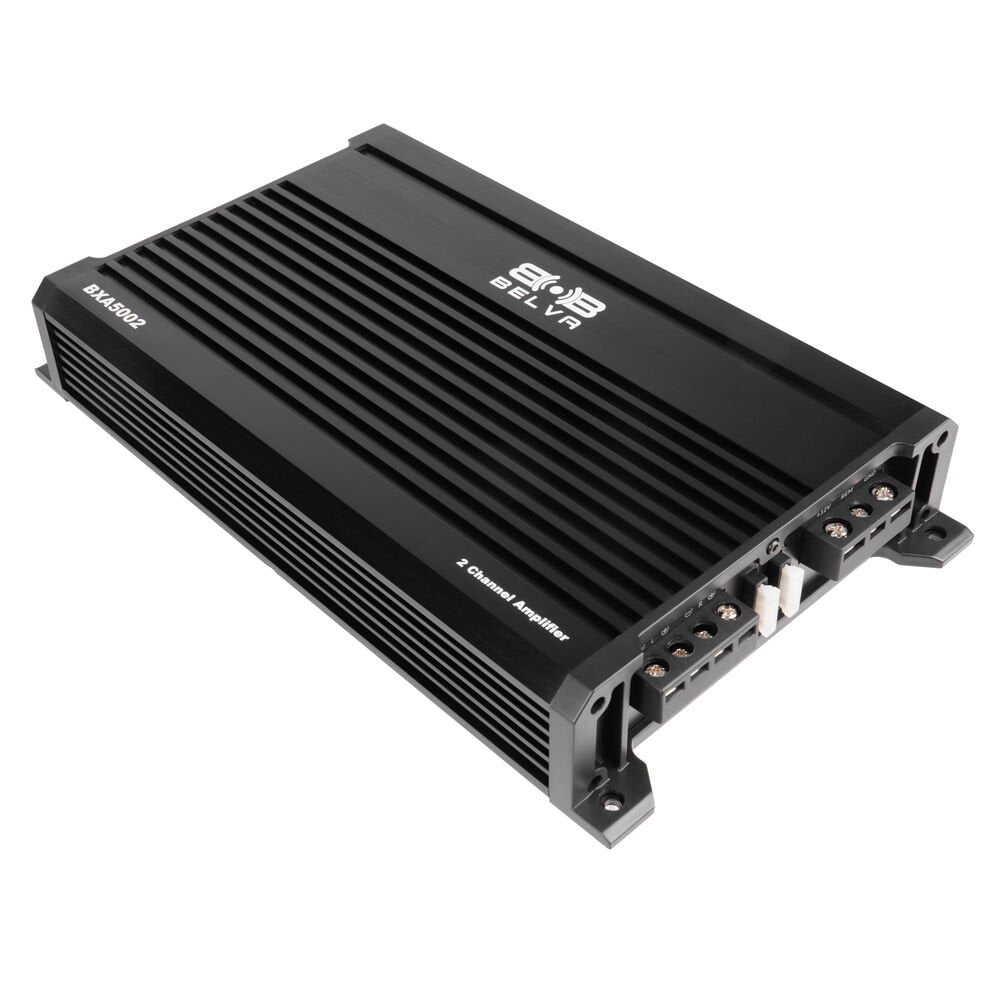

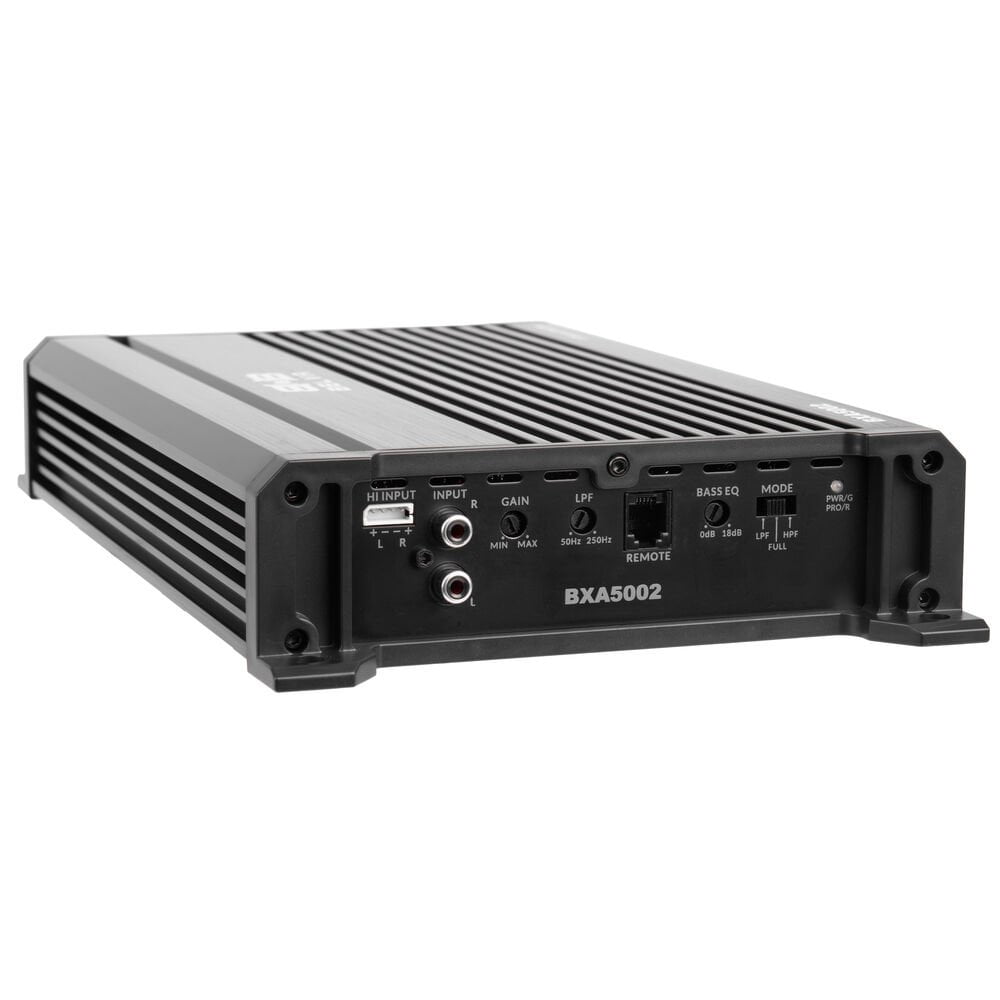

Belva BXA5002 Class-A/B 2-Channel Car Audio MOSFET Amplifier 500W w/ Remote Subwoofer Control
Product details
| Management number | 238020863 | Release Date | 2026/07/11 | List Price | $26.00 | Model Number | 238020863 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The new Belva BXA5002 is categorized as a Class A/B amplifier. This class of amplifiers combine the high efficiency of a class A amplifier and lower distortion found in class B amplifiers. The class AB amplifier acts more similarly to a class A amplifier by biasing both transistors so they become active when the signal is close to zero. As the signal excursion increases into a larger waveform, only one transistor remains active, a primary function found in class B amplifiers.
- Product Highlights
- 125 watts x 2 channel @ 4 ohms
- 250 watts x 2 channel @ 2 ohms
- Bridged: 500 watts x 1 channel @ 4 ohms
- Total Peak Power: 500 watts
- Class A/B 2 ohms Stable 2-Channel-Channel
- Product Details:
- BX Series Class A/B 2 ohms Stable 2-Channel-Channel Amplifier
- Peak Power Rating:
- 4 ohms: 125 watts x 2 channel
- 2 ohms: 250 watts x 2 channel
- Bridged, 4 ohms: 500 watts x 1 channel
- Total power output: 500 watts
- Pulse Width Modulated MOSFET power supply
- LED Power/Protect Light

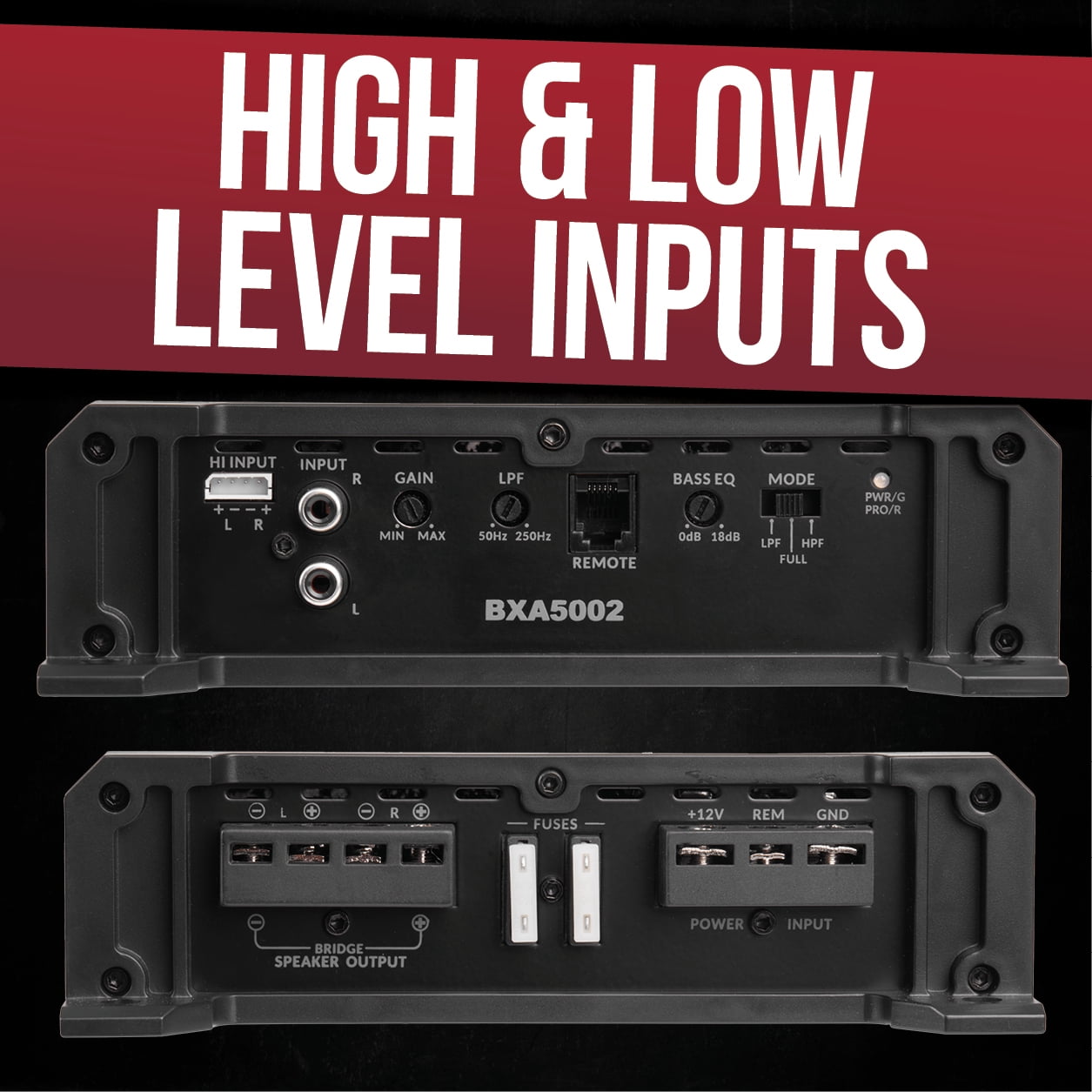

- Speaker-level (high-level) inputs

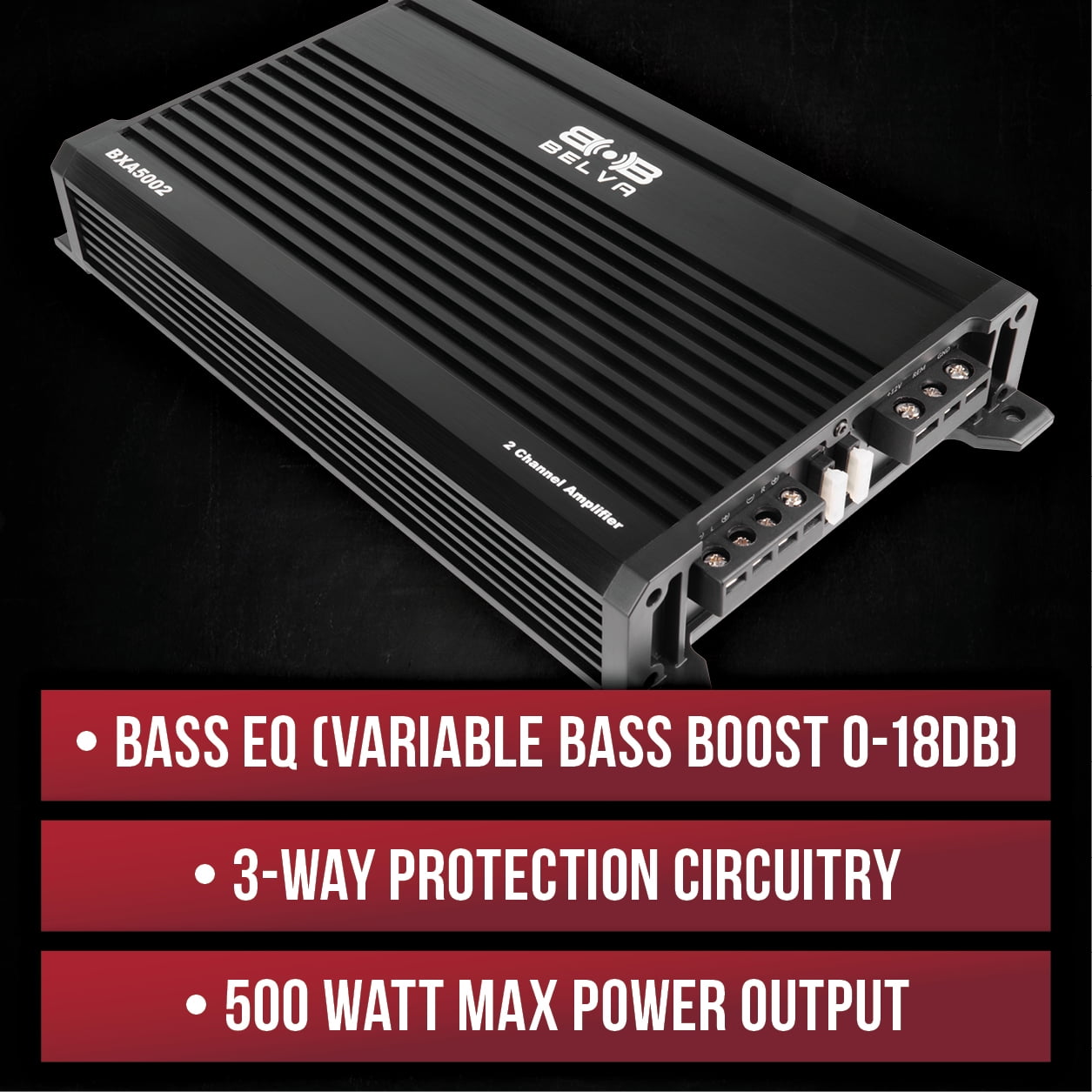

- 3-way protection circuitry (thermal, overload, and speaker short protection)
- Input sensitivity:
- Low level: 200mV - 8 volts
- Frequency Response: 10 - 30,000 Hz
- Total Harmonic Distortion (THD): 0.05%
- Signal to Noise Ratio: 96 dB
- Variable high-pass filter: 50 - 250 Hz
- Variable low-pass filter: 50 - 250 Hz
- Variable Bass Boost: 0 - 18 dB
- Fuse Rating: 50A
- 8 AWG gauge power and ground wiring is recommended for installation.
- Dimensions: 7.48" W x 11.02" L x 2.00" H
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
- Power Specifications - Full Range Channels
- Peak Power @ 4 ohms - 125 watts x 2 channel
- Peak Power @ 2 ohms - 250 watts x 2 channel
- Bridged Peak/Max Power - 500 watts x 1 channel
- Amplifier Specifications
- Series - BX Series
- Amplifier Class - A/B
- Number of Channels - 2-Channel
- Total Peak Power Output - 500 watts
- Maximum Input Gauge Size - 8 AWG
- Minimum Impedance Unbridged - 2 ohms
- Minimum Impedance Bridged - 4 ohms
- Frequency Response - 10 - 30,000 Hz
- THD at Rated RMS Power - 0.05%
- Speaker Level Inputs - Yes - with included adapter
- Preamp Outputs - No
- Built-in Crossover - Low-Pass (LP), High-Pass (HP), Full (AP)
- High-Pass Crossover Frequency - 50 - 250 Hz
- Low-Pass Crossover Frequency - 50 - 250 Hz
- Signal-to-Noise Ratio - 96 dB
- Bass Boost - 0 - 18 dB
- Remote bass/level controller - Yes
- Fuse Rating - 25A x 2
- Total Fuse Rating - 50A
- Strappable - No
- Sonic Certified Amplifier - No
- Amp Bluetooth Connectivity - No
- Low-Level Input Sensitivity - 200mV - 8 volts
| Brand | Belva |
|---|---|
| Rms power rating | 125 W |
| Channels | 2 |
| Impedance | 4 ohm |
| Features | Custom-Fit |
| Peak audio power handling | 500 W |
| Rec. use | Car Audio |
| Color | Black |
| Audio output | 500 W |
| Total harmonic distortion | 0.05 % |
| Signal-to-noise ratio | 96 dB |
| Product line | BX-Series |
| Items included | Bass Knob for Precision Tuning |
| Accessories | Remote Subwoofer Level Control |
| Inputs/Outputs | Speaker-level (high-level) inputs |
| Input/output direction | Output |
| Model | BXA5002 |
| Manufacturer | Belva |
| Vehicle type | Car |
| Vehicle fitment type | Universal |
| Vehicle model | BXA5002 |
| Color category | Black |
| Has nrtl listing certification | N |
| Height | 3.15 in |
| Dimensions | 7.48" W x 11.02" L x 2.00" H |
| Assembled product weight | 5.78 lb |
| Volts | 16 V |
| Amps | 50 Amps |
